TS-500DT DMR/TETRA Dual Band Selective Fiber Opitcal Repeater

TETRA Off Air Repeater

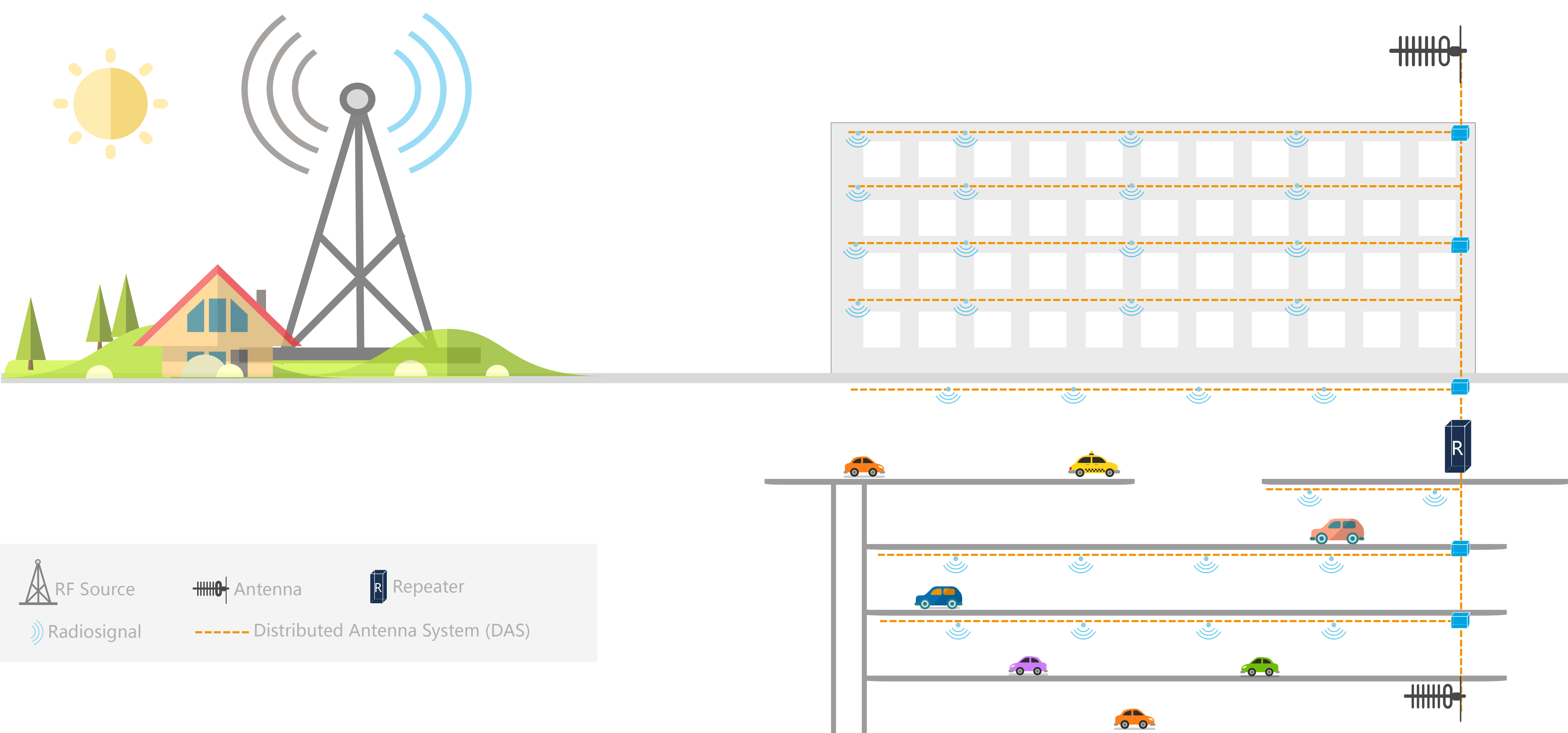

Ciricom DMR/TETRA Dual mode RF Repeaters system is designed to solve problems of weak mobile signal, which is more cost-effective than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low-power signal from BTS via radio frequency (RF) transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.

FEATURES



TETRA 380MHz and LTE 700Mhz repeater for Public SafetyProvides UHF, TETRA, TETRAPOL and LTE multi-band
Full Duplex mode in Tetra network and MCPTT supportedUse PLL and ALC technology, high stability and reliability
Easy installation，operation and maintenance Compact IP65 weather proofed enclosure passively cooled



TECHNICAL PARAMETERS

Items

DMR Mode ParametersTETRA Mode Parameters
DownlinkUplinkDownlinkUplink
Frequency Range460MHz~465MHz450MHz~455MHz
390MHz～395MHz 380MHz～385MHz
No. of Channel//88
Output Power（Max）      24±2Bm      17±2dBm37±2dBm(Total)30±2dBm(Total)
Max Gain      85±3dB      80±3dB90±3dB85±3dB
Gain Modulation Range30dB30dB
Gain Modulation Step1dB1dB
Gain Modulation ErrorWhile gain is 0-20dB,Error≤1dB;While gain is 21-30dB时,Error≤1.5dBWhile gain is 0-20dB,Error≤1dB;While gain is 21-30dB时,Error≤1.5dB
Noise Factor≤5dB≤5dB≤5dB≤5dB
Max NO Damage Input Power-10dBm-10dBm-10dBm-10dBm
Automatic Level Control（ALC）Output power variation < 2dB or be off when adding 10dB at max output power.Output power variation < 2dB or be off when adding 10dB at max output power.
Pass Band Ripple≤5dB≤3dB
VSWR≤1.5≤1.5
Time Delay≤5.0μs≤22.0μs
Evm (RMS)6%
6%
ACLR (PAR=8dB)≤-45dBc@5MHz
≤-50dBc@10MHz		/

Spectrum Emission

Mask

      Meet 3GPP(PAR=8dB)/
Spurious Emissions(In-Band)≤-36dBm/30kHz ≤-36dBm/30kHz
Spurious Emissions(Out-Band)9kHz～1GHz：≤-36dBm1GHz～12.75GHz：≤-30dBm9kHz～1GHz：≤-36dBm1GHz～12.75GHz：≤-30dBm
IMD(In-Band)1GHz～12.75GHz：≤-30dBm1GHz～12.75GHz：≤-30dBm
IMD(Out-Band)9kHz～1GHz：≤-36dBm1GHz～12.75GHz：≤-30dBm9kHz～1GHz：≤-36dBm1GHz～12.75GHz：≤-30dBm
Out of band Gain

≤-40dBc@1MHz

≤-60dBc@5MHz

≤-40dBc@±200KHz

≤-50dBc@±600KHz

≤-55dBc@±1MHz

≤-60dBc@±5MHz

RF Connection ModeN/F,50Ω
Power Supply Mode

The Power adapter,

In: AC 100V~260V,45~55Hz;

Out: 9V/5A;

Power Consumption

MasteUnit : ≤130W

Remote Unit : ≤230W

Operation Temperature-25℃ ～ +50℃
Storage Temperature-40℃ ～ +85℃
MountingWall Mounted
Machine WeightMaster Unit ≤35kg; Slave Unit ≤35kg
Dimension

Master Unit:483mm×180mm×400mm （W*H*L）

Remote Unit:490mm×410mm×187mm （W*H*L）

MTBF≥500000h
